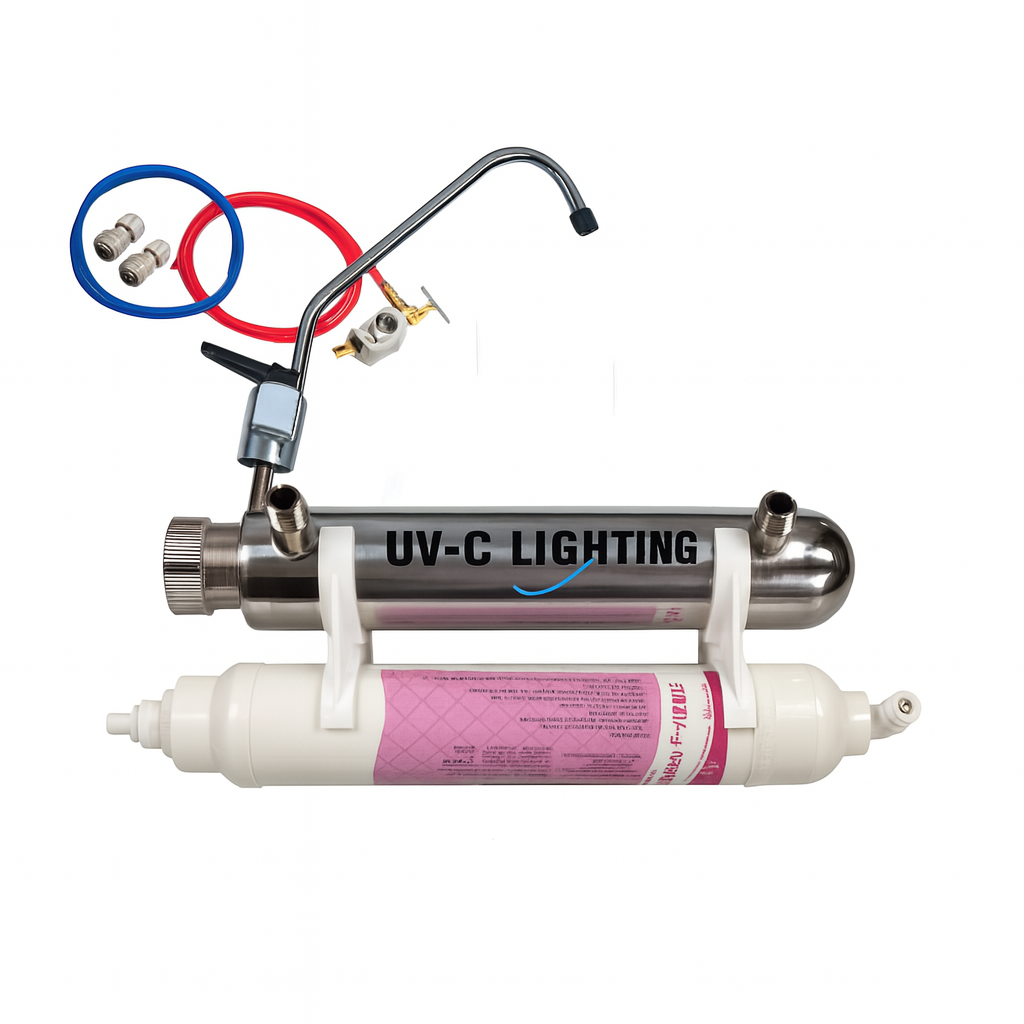

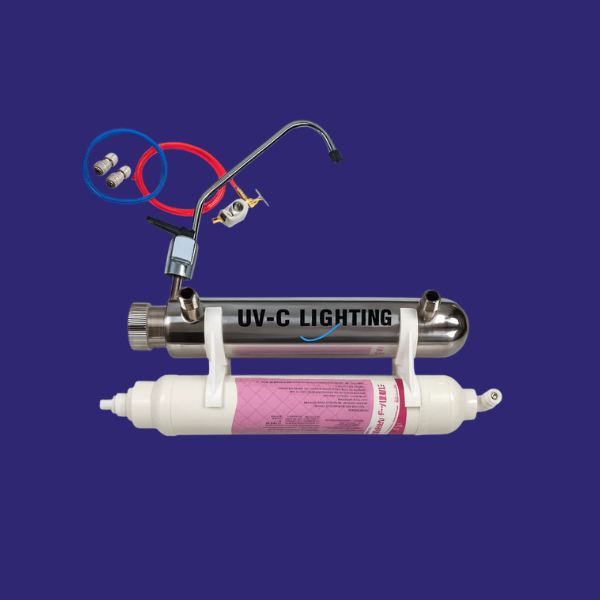

3.9 lpm Ultra Violet and sediment system With Tap (UV3.9WL5M)
UV Water sediment Filter system and Tap
Suitable for Well Borehole and spring or stream water.
Our UV systems employ a low pressure mercury vapour discharge lamp surrounded by a water jacket whose inner wall is made from a special UVC-transparent quartz material.
The Lamp Produces a very strong spectral line at 254nm in the shortwave region, which is the waveband most lethal to micro-organisms.
The UV light shines powerfully through water passing along the unit, destroying the cell DNA (or RNA in the case of viruses) making the micro-organisms inactive.
We use a stainless steel water chamber maximising full use of the available ultra-Violet energy, resulting in long exposure times in high doses and minimising UV light absorption into the chamber wall.
All units come complete with control box
TECHNICAL SPECIFICATION
Flow Rate: 1GPM drinking water
Power ratings 220/240VAC 10W
Dimension of chamber
Length 260 x depth 50mm
Max Pressure 10 BarG (140psi)
Test Pressure 15BarG
Chamber Construction 304 Stainless Steel
Standard Connection -1/4"Male Thread with Adapter fitting for 1/4" flexible tube.
Unit includes Pre Connected inline 5 Micron sediment filtration.
To add a self piercing saddle clamp for easy DIY fitting see options below
