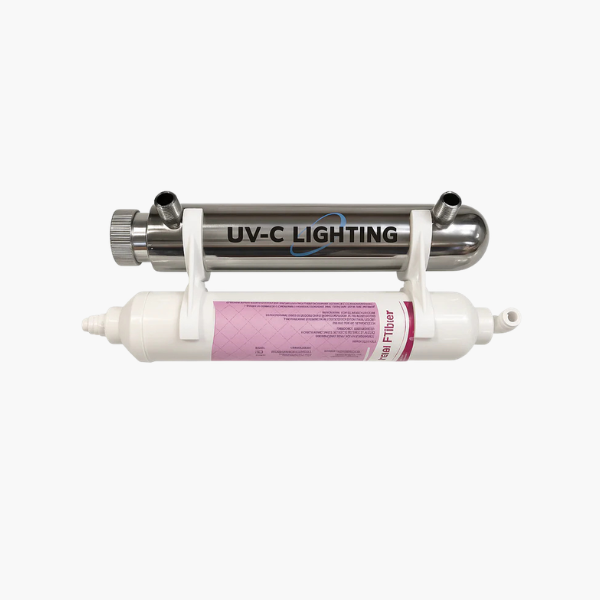

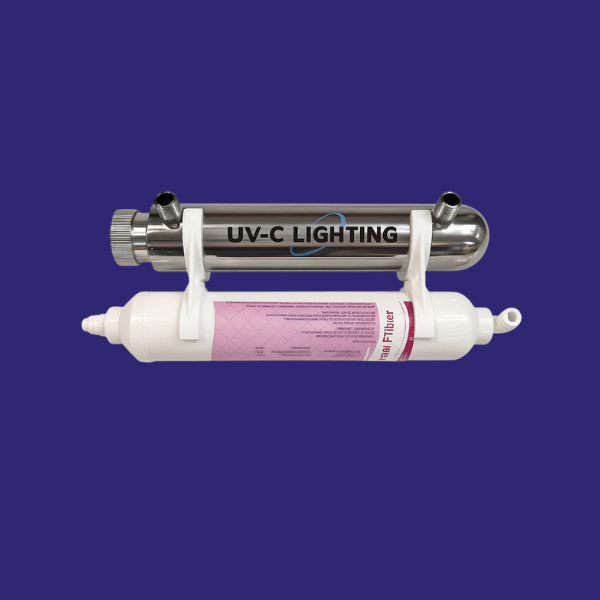

3.9 lpm Ultra Violet and sediment system (UV3.9WL5M)


Ultra Violet: 3.9 lpm Ultra Violet and sediment system (UV3.9WL5M)
Price:
Sale price$178.00

CALL A MEMBER OF OUR TEAM NOW - 0116 276 3334

UV Water and sediment Filter system

Suitable for Well Borehole and spring or stream water.

Our UV systems employ a low pressure mercury vapour discharge lamp surrounded by a water jacket whose inner wall is made from a special UVC-transparent quartz material.

The Lamp Produces a very strong spectral line at 254nm in the shortwave region, which is the waveband most lethal to micro-organisms.
The UV light shines powerfully through water passing along the unit, destroying the cell DNA (or RNA in the case of viruses) making the micro-organisms inactive.
We use a stainless steel water chamber maximising full use of the available ultra-Violet energy, resulting in long exposure times in high doses and minimising UV light absorption into the chamber wall.
All units come complete with control box

TECHNICAL SPECIFICATION

Flow Rate: 1GPM drinking water
Power ratings 220/240VAC 10W
Dimension of chamber
Length 260 x depth 50mm
Max Pressure 10 BarG (140psi)
Test Pressure 15BarG
Chamber Construction 304 Stainless Steel
Standard Connection 1/4" Male Thread with Adapter fitting for 1/4" flexible tube

Unit includes Pre Connected inline 5 Micron sediment filtration
