With FREE 15mm Fitting Kit + FREE Block Salt
Five Year Parts and Labour Warranty
This Water Softener Installation Kit Includes:
2 x 15mm Valves
1 x 15mm Isolating valve
2 x 15mm Hoses, including washers.
1 x meter of Overflow Line
2 x meters of 3/8" Drain Line
1 x Water Test Kit

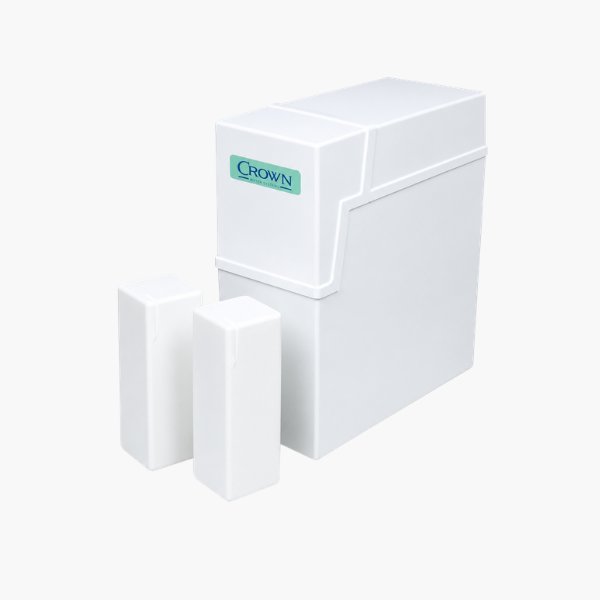

Harvey's Crown Non Electric Twin Tank Block Salt Water Softener
Meter Controlled Softener.
This Machine will only perform a regeneration based on your water consumption, making it far more efficient than most other machines. Supplies the entire property with softened limescale free water.
WHY THIS IS THE ONE TO BUY?
The Harvey's Crown Non Electric Twin Tank Block Salt Softener differs in a number of ways from the traditional single tank units. The most obvious difference is the two tanks.
So why are two tanks better than one?
Single tank softeners cannot supply soft water whilst performing a regeneration program. All softeners need to perform regeneration as they all have a limited amount of water that they can soften. Regeneration effectively cleanses the resin to allow it to continue to produce soft water. A single tank machine will perform this action normally in the early hours of the morning. The disadvantage of this is you have the possibility of the softener doing this either before it has used up its full capacity or worse still - running out if you suddenly use more water than the machine thinks you will! You might have extra guests turn up unexpectedly and the softener won't be expecting them either!
As the Twin Tank has two tanks it can regenerate at any time of day or night as only one tank at a time is in service. When it has reached its capacity, it performs a regeneration whilst the other tank continues to supply you with soft water.
WARRANTY
The Harvey Twin Tank Non Electric Block Salt Water Softener carries a full five year parts and labour warranty (valid on purchases made after May 2014).
MADE IN ENGLAND
This water softener is manufactured in the UK and is therefore designed specifically for the UK market and for our domestic water system. We also wet test this model before it leaves the factory. You can rest assured that your softener will be working correctly when you are ready to have it installed.
COMBINATION BOILERS AND PRESSURISED SYSTEMS
With more heating systems using either a combination boiler or a pressurised system, the need for a water softener with the available flow rate is of paramount importance. All of our water softeners have an unrivalled flow rate of up to 50 litres per minute, making them ideal for even the most demanding system.
INSTALLATION
Every softener comes complete with simple fitting instructions, waste & overflow hoses and an option of a Full Installation kit, allowing for installation by a plumber or DIY enthusiast.
This particular model is supplied with a free 15mm fitting kit. Chargeable upgrade to 22mm fitting kit if required.
Technical
Valve- Meter Controlled
Connections
Inlet/Outlet 3/4" bsp male parallel
Overflow 1/2" Hose connector
Drain 3/8" O.D tubing
Operating Parameters
Max operating Pressure 8 bar (116 p.s.i )
Min Dynamic Operating Pressure 1 bar (14.5 p.s.i )
Max water temperature 30 degrees centigrate
Min water temperature Protect from freezing
BSI approved for use with aluminium heat exchange systems
Volume & Weight
Softener Resin volume 2x 4.3 litres
Resin Vessel Dimensions 140mm Diameter x 400mm high
Salt Storage capacity 2 x Block Salt

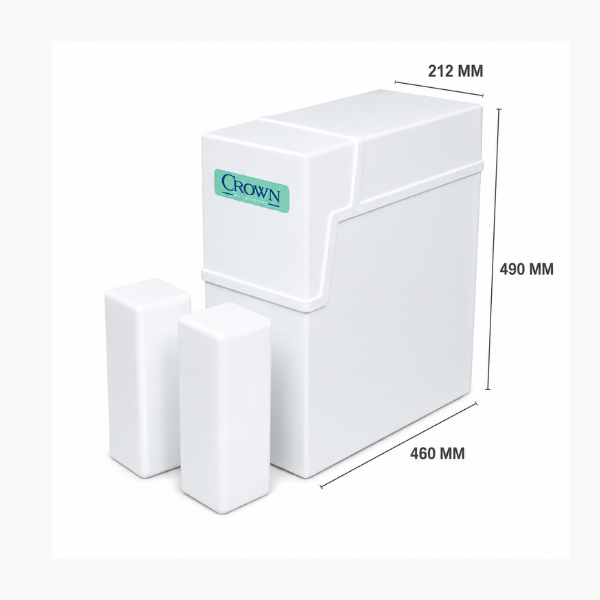

Dimensions
Depth 460mm - (17 inch approximately)
Height 490mm - (19 inch approximately)
Width 212mm - (8 1/2 inch approximately)
Please allow 20mm for the elbow connections on the side of the softener
Operating Data
Up to 508 Ltr Capacity per tank at 250ppm hardness
350 grams salt used per regeneration
65% Salt efficiency
40 litres / min peak flow at 2 bar pressure drop
30 litres / min Rated service flow at 1 bar pressure drop
23 litres Water used per Regeneration
1.9 1/ min Maximum flow rate to drain
11 Minutes Maximum Regeneration Time
< 1mg per litre Softened water hardness
Installation Kits
Pressurised Systems (Mega Flo) = 22mm Kit
Standard Fittings (most homes = 15 mm Kit)
Upgrade to 22mm kit available if required (chargeable option)
*FREE SALT OFFERS TO UK MAINLAND ONLY
£10.00 delivery charge for free salt provided
Equivalent to Harvey TwinTec S3/S4
